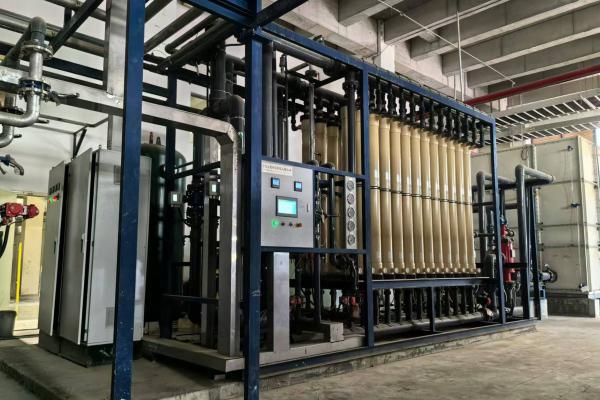

Industrial Ultrafiltration Equipment Uf Filtration System With Adjustable Filtration Cycle

Name: Industrial Ultrafiltration Equipment Uf Filtration System With Adjustable Filtration Cycle
Brand: wanyuan
Price: 1 USD

Place of Origin : China

Brand Name : wanyuan

Certification : ISO9001,ISO14001,ISO45001

MOQ : 10

Price : Negotiable

Packaging Details : Wooden box

Delivery Time : Negotiable according to customer requirements

Payment Terms : L/C, D/P, T/T, Western Union

Supply Ability : Negotiable according to customer requirements

Backwash flux : 180~240 L/m2*h

Water production flux : Maximum 150 L/m2*h

Filtration cycle : 20~60min

PH value : 1~13

Backwash pressure : <2bar

Type : Ultra Filtration System

Membrane : UF Membrane

Backwash time : 30~60s

Contact Now

Industrial Ultrafiltration Equipment Uf Filtration System With Adjustable Filtration Cycle

Product Description:

Ultrafiltration technology is a selective method used to separate substances by utilizing the microporous structure present on the membrane's surface.

Under the effect of a specific force, when a liquid mixture passes through the membrane's surface, small molecular solutes penetrate the membrane, forming ultrafiltrate, while larger molecular substances are retained, forming concentrate.

The process facilitates the separation, concentration, and purification of large and small molecules, thereby providing high-quality output that is free from impurities. Generally, the pressure used is around 0.1~3bar.

Working Principle:

The ultrafiltration equipment functions based on membrane separation technology, where the polluted water undergoes a filtration process using the ultrafiltration membrane.
During the process, water molecules and small molecular substances pass through the membrane, while larger particles and pollutants are retained on the membrane's surface to form a concentrate that can be further processed after treatment.

Configuration:

Backwash System: The equipment consists of an effective backwash system, which facilitates cleaning, ensuring high efficiency and longevity of the membrane.
Chemical Dispersion Cleaning System (Optional): A chemical dispersion cleaning system can be added to enhance the membrane's durability by preventing fouling and clogging.
Cleaning System: The system has an automatic cleaning function that ensures the membrane's continuous operation, preventing blockage by removing deposited impurities.
Compressed Air System: The equipment uses compressed air to remove concentrated impurities deposited on the membrane's surface, ensuring a high-quality output.

Working Steps:

The equipment's working process involves several filtration steps, including:
Upper backwash (15~30s)
Lower backwash (15~30s)
Chemical Enhanced Backwash (CEB) is optional and can be selected when the water quality is poor (or fluctuates significantly)
Positive flushing (10~30s).

Product Functions:

Removes suspended matter, bacteria and viruses from water
Fine filtration to improve water quality
Supports reuse of reclaimed water
Stable water treatment effect
Can be used in conjunction with other water treatment processes to improve overall treatment efficiency

System Design

System design is an important step in the water treatment process. It involves several essential elements, such as:

Reasonable and effective pretreatment;
Obtaining necessary raw water information, including raw water type, turbidity, COD, suspended solids, and other parameters;
Determining the number of membrane components and various parameters in operation;
Designing the backwash system;
Selecting the dosing type and determining the dosing amount.

Features:

High filtration efficiency: can intercept particles larger than 0.01μm.
Low energy consumption and good effect: The filtration process is carried out at room temperature, with mild conditions and no component damage, which is particularly suitable for the separation, classification, concentration and enrichment of heat-sensitive substances such as drugs, enzymes, and fruit juices.
Energy saving and environmental protection: The filtration process does not require heating, has low energy consumption, does not require the addition of chemical reagents, and is pollution-free.
High separation efficiency: It is very effective for the recovery of trace components in dilute solutions and the concentration of low-concentration solutions.
Easy operation: The process only uses pressure as the power of membrane separation, with a simple separation device, short process, simple operation, and easy control and maintenance.
The product has a range of functions to make water safe and pure to drink, such as removing unwanted matter, bacteria, and viruses. It also supports the reuse of reclaimed water, making it sustainable and environmentally friendly. In addition to these core functions, the product can be used alongside other water treatment processes in order to further improve the overall treatment efficiency. As for product features, the filtration efficiency is high, and it successfully filters out particles that are larger than 0.01μm. The filtration process is conducted at room temperature with mild conditions that prevent any damage to its components, making it perfect for heat-sensitive substances such as drugs, enzymes and fruit juices. The process is energy-efficient and environmentally friendly too, and requires no heating, chemical reagents or any other form of pollution-causing tools. It has a high separation efficiency, perfect for the recovery of trace elements in dilute solutions and concentration of low-concentration solutions. It is easy to operate too with a simple separation device, a short process, minimal operation required, and is easy to manage and maintain.

Technical Parameters:

Temperature, PH value, and Water Production Flux
The temperature range for this process is between 0 and 45 degrees Celsius. The pH value must be kept between 1 and 13 for optimal performance. The maximum amount of water that can be produced per square meter per hour is 150 liters.
Backwash Flux and Filtering Cycle
The backwash flux ranges from 180 to 240 liters per square meter per hour. The filtration cycle can last anywhere between 20 and 60 minutes.
Maximum Transmembrane Pressure Difference and Maximum Water Inlet Pressure
The maximum transmembrane pressure difference is 0.2 megapascals. The maximum water inlet pressure is 0.5 megapascals.
Backwash Time and Influent Particles
The backwash time is between 30 and 60 seconds. The influent particles must be less than 150 micrometers.
Backwash Pressure
The backwash pressure should not exceed 2 bars for optimal performance.

Applications:

The system design has a wide range of application areas, which include:

Industrial wastewater treatment;
Municipal sewage treatment;
Food and beverage industry;
Pharmaceutical industry;
Circulating water treatment in power industry;
Paper and textile industry;
Pretreatment of seawater desalination.

Support and Services:

Our Ultrafiltration Equipment product is designed for reliable and efficient filtration of water and other liquids. Our technical support team is available to assist with any questions or issues related to product installation, operation, and maintenance. We also offer a range of services, including system design, pilot testing, and customized solutions to meet specific customer needs. Our goal is to ensure optimal performance and longevity of our Ultrafiltration Equipment product for maximum customer satisfaction.
